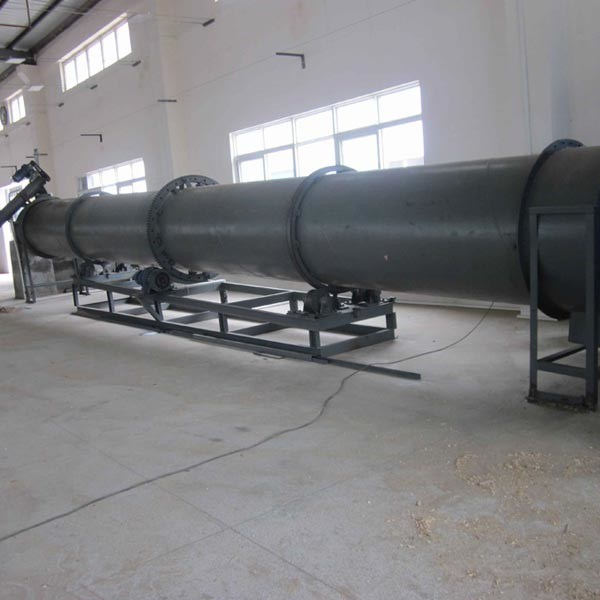

Three Channels Rotary Drum Dryer With Cyclone Dust Collector

Product Description

Three Channels Rotary Drum Dryer With Cyclone Dust Collector

Three channels rotary drum dryer is used to dry materials, it equipped with cyclone dust collector, which has features of high efficiency, energy-saving, and small floor space. Compared with other dryer machines, it saves energy by 30%-50%, thus maximum saving energy and drying cost.

Technical Parameters of three channels rotary drum dryer

Three channels rotary drum dryer application

The dryer is suitable for drying corn straw, soybean straw, cotton stalk, wheat straw, sorghum stalk, wood shavings, sawdust, mulberry leaves and other fiber materials.

Working principle of three channels rotary drum dryer

The crushed materials of which the moisture is about 35%-65% are sent into the roller by conveyor to realize downstream drying. Under the effect of the inner shoveling plate, materials are taken and scattered constantly, and move in the spiral forward method. Through three layers (inner, middle, and outer layer), heat exchange is realized between material and hot air medium.

Three channels rotary drum dryer characteristic

1. High performance price ratio. It introduces novel and unique sealing device and is matched with thermal insulation system of excellent effect, thus decreasing the coal consumption of the whole drying system.
2. Energy conservation. Dryer internal structure using a variety of high-lift board combination mode, effectively regulate the drying process and heat distribution, high heat utilization, exhaust gas discharge temperature is low.
3. Better quality. Rapid drying moisture reducing from 65-75% to 14-18% in one-time. Pasture temperature is always lower than 50 ℃, dried grass completely retained the nutrients of fresh pasture, bright color, smell fragrance.
