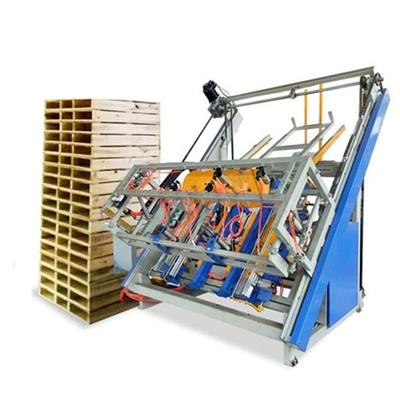

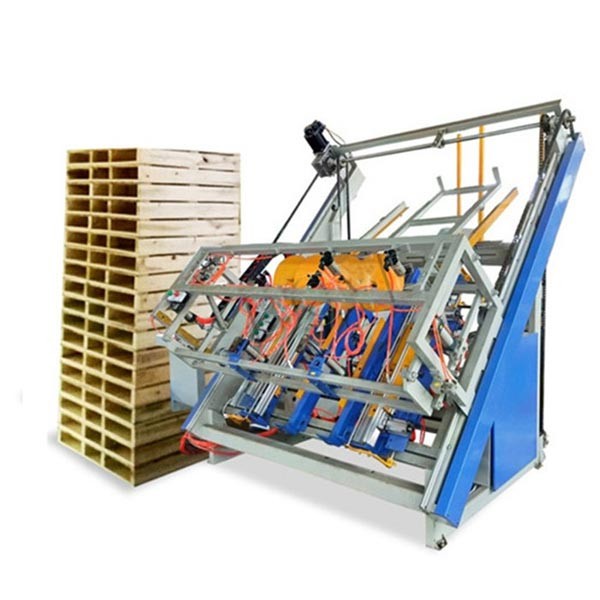

Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine

Product Description

Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine

Introduction of Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine

Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine is equipped with tweezers with a single pneumatic locking system and 2 or 3 nail distributors, has been designed to individually and simultaneously nail 45 loose nails. The boxes allow the operator to use any type of nail with a measure ranging between 30 mm and 90 mm. Adjustment of the nailing process and of the operating cycle’s speed is automatically controlled by PLC through a touch-screen control panel with which the operator automatically manages the number and combination of nailing operations to perform, when different types of nails are used simultaneously, and the time of the operating cycle, in standby and at work. The counterbalancing nailing bar, which can automatically level itself on the product before it is nailed, guarantees the bar’s millimetric precision.

The technology for keeping the oil in the hydraulic circuit constant

The nailing system of Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine has a heat exchanger to keep the temperature of the oil in the hydraulic circuit constant. Lubrication is automatic and timed for a preset operating period, and is adjustable from 0 to 12 months. The number of tweezers with a single pneumatic locking system and the number of boxes to feed the nail out are customizable. Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine also features all the protections and safety systems required by the applicable European Directives as a standard feature.

Technical Parameters of Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine

Features of Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine

1. New quick-adjust feature
2. Pallet type: non-standard American/European pallet, Stringer/American pallets, customizable special-shaped pallets
3. Tolerance: +/-3 mm
4. Foot & roof board thickness: 10-25 mm
5. Easily adjustable pallet size
6. Flips pallet automatically
7. Low maintenance
8. Uses collated nails or staples
9. Offers increased speed and productivity
10. Accurate nail placement

Advantages of Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine

Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine will auto clamping after the worker put the wood pallet bottom bean in the machine, then put wood pallet plate, after automatic nailing. When complete it, the work needs to flip the other side, put the plate in, then nailing it. Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine produces large pallets and/or perimeter pallets and/or closed pallets. And Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine is a solution for companies who want to produce large pallets in an industrial way. The dimensions range of the pallets is from a minimum of 800 mm long by 600 mm in width to a maximum of 2100 mm long to 2500 mm in width. Besides, Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine can be inserted into a processing line completed with other auxiliary machines suitable for the machining of the large pallet, such as automatic stackers.

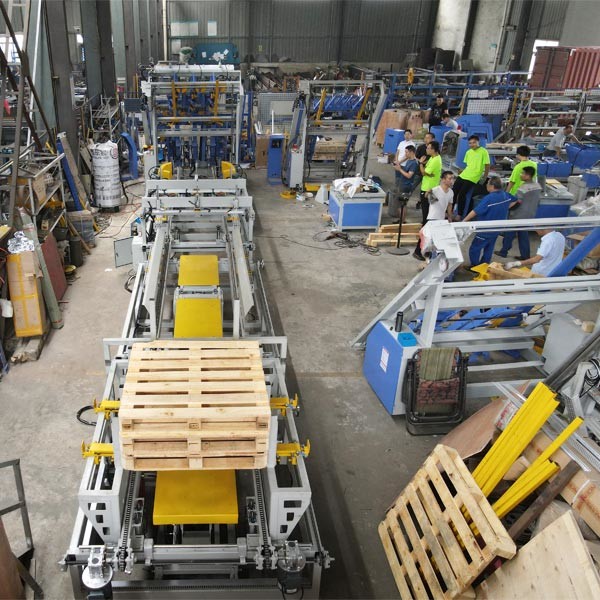

Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine is controlled by a touch screen. You can choose different programs according to different wood boards and different size wood pallets. The automatic stacking system of Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine can add transport system, then it can make the pallets stack more to save your space and labor cost. Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine will form a line with the nailing machine, after nailing, flip the wood pallet to the stacking platform. It will achieve the effect of automatic collect wood pallet and easy to transport. It saves labor and operation time.

Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine achieves fast and efficient nailing work. One more thing, it could switch different program basis on different material plates to produce non-standard pallets. Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine mainly can apply for produce American stringer pallets and European pallets. Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine is equipped auto stacking platform, wood pallet lifting device, and flip picking device. Fast and easy adjustments are the peculiarities and characteristics of Hydraulic CNC Stringer Wooden Pallet Chief Nailing Machine. With the simultaneous nailing, you will prevent the movements of the various elements that compose the pallet. An automatic clamp will load the pallet in the right position on the pallets finishing line.
