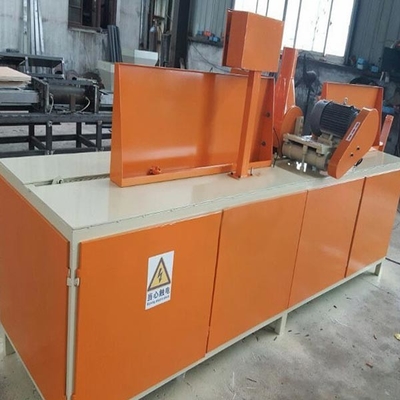

Stringer Pallet Wood Chamfering Machine

Product Description

Pallet Chamfer for American Stringer Wood Pallet

Introduction of Pallet Chamfer for American Stringer Wood Pallet

Pallet chamfer for American stringer wood pallet manufactured by ThoYu is designed to precision chamfer board for banding straps. And pallet chamfer for American stringer wood pallet is equipped with split indexable data chipping blades. Besides, pallet chamfer for American stringer wood pallet has a frame constructed of heavy gauge square and rectangle tubing.

Wood pallet type:

1. American stringer pallet

2. European block pallet

3. Other special pallets

4. Euro pallet

5. American pallet

6. Other pallets.

Characteristics of Pallet Chamfer for American Stringer Wood Pallet

1. Easy Operation: 1 worker.
2. Wood board specification: 80-145 mm
3. Working mode: automatic feeding
4. Chamfer length range: 1300 mm, thickness 30-40 mm
5. Chamfer width: 90-130 mm
6. Working mode: continuous automatic feeding and discharging, 2 sides at the same time out.
7. Dual heads cut, wide chamfer at a rate up to 6300 boards per hour.
8. Simple machine maintenance—material hold downs lift off for ease of cleaning.

Technical Specification of Pallet Chamfer for American Stringer Wood Pallet

Anvanteges of Pallet Chamfer for American Stringer Wood Pallet

1. Pallet chamfer for American stringer wood pallet is perfect for your chamfering requirements. And pallet chamfer for American stringer wood pallet requires only one person to operate, and with the optional chamfering attachment, it can also be used as a chamfering machine. Pallet chamfer for American stringer wood pallet adopts a continuous feed, work platform automatic discharge mode, you can also open a dual-slot, trench smooth without rough parts, standard size, high precision, adjustable slot depth specifications.
2. Pallet chamfer for American stringer wood pallet is high-quality, safe, practical, efficient and a series of properties, so that more wood pallet wood factory automation to improve mechanically, completely replace the previous trough excavation work manually. Pallet chamfer for American stringer wood pallet has minimal set-up time and four second cycle times. The operator places two to three stringers at a time in the stringer magazine. The stringers are positioned to the left or right end stop. The two palm buttons are then pressed and the first chamfer pass is made. The material is then slid over to the opposite stop and the process is repeated to make the second chamfer. Stack the finished product.
3. Reliable security guards, when workers operate completely without touching knives, quiet high. Pallet chamfer for American stringer wood pallet is with product design, design ideas unique in the country. Customizable to your operational needs. ThoYu manufactures many different standard and custom machine variations. We can provide the best possible machine for your application. We strive to build our equipment sturdy enough for the toughest environment of any pallet production location.
